The 800W LED BSWF light integrates beam, pattern, dyeing and cutting functions, and the cutting system precisely shapes. The high-intensity light source ensures firm and intense light, the shaking head is flexibly adapted to large venues, and the cutting edge is sharp without blurring, providing professional support for complex light and shadow narratives.
800W LED, adds precise cutting to BSW functions.
Sharp beam shaping, detailed light control.
Fits large venues requiring intricate lighting.

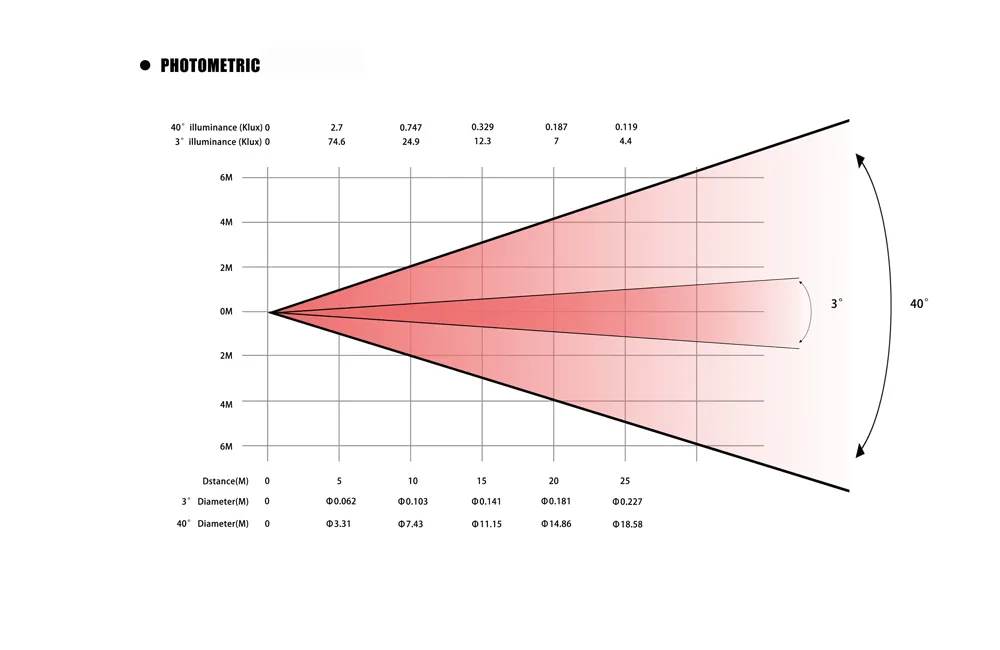

| Optical System | Light source: 800W white LED module Lamp Life: > 20,000 hours Color rendering index: 70 Beam Angle: 3°-40° Color temperature: 7800K |
| Color System | CMY Infinite Color Mixing The linear variation range of CTO color temperature: 2700K-6700K 1 independent color palette, 5 color plates + white light, featuring step and linear color changing methods, as well as adjustable rainbow flowing water effect |
| Pattern System | 1 Rotating Pattern Wheel with 7 Removable Pattern Filters + White Light, enabling Flowing and Jittering Effects, Self - Rotation, and Pattern Wheel Positioning 1 Fixed Pattern Wheel with 6 Patterns + White Light, enabling Flowing and Jittering Effects |
| Cutting System | One set of four - piece full - range cutting system, rotatable ±150° |
| Effect Configuration | Dimming: 0-100% linear dimming Soft light: 1 independent fogging plate, stackable, 0-100% soft light effect Stroboscopic effect: 1-25Hz ultra-high-speed stroboscopic effect, with the option of random stroboscopic and pulse stroboscopic Prism: 1 prism, 1 8-prism. The prisms can rotate in both directions, can be stacked, and the selection speed is adjustable |
| Pan and Tilt Parameters | Horizontal/Vertical: Horizontal 540°, Vertical 270°, 16 - Bit precision scanning, with automatic return - to - position correction function. |
| Control and Programming | Channel Control: Standard 35CH Communication Protocols: Internationally - used DMX512; RDM; Sound - activated; Auto - run; Master - Slave Menu Display: LCD touch - screen display |
| Electrical Control Technology | When the light is off, power automatically reduces for energy - saving and environmental protection Intelligent fan control Heat Dissipation System: Forced heat dissipation; Advanced and scientific thermal system design ensures that all internal systems of the lamp are within a reasonable operating temperature range, which can extend the lamp's service life and improve its reliability Electronic sensing detection DMX channel level monitoring The X and Y axes are driven by three - phase motors, with smooth low - speed scanning and low noise Query lamp information, bulb usage time, and fault information through the display screen Electronic focus function Bidirectional RDM data transmission Software upgrade via DMX port using software upgrade device Input signal isolation protection function |
| Working Environment | Operating temperature：-10℃~40℃ |
| Power Supply Parameters | Input voltage：AC 110V-240V 50/60Hz Power：1200W |

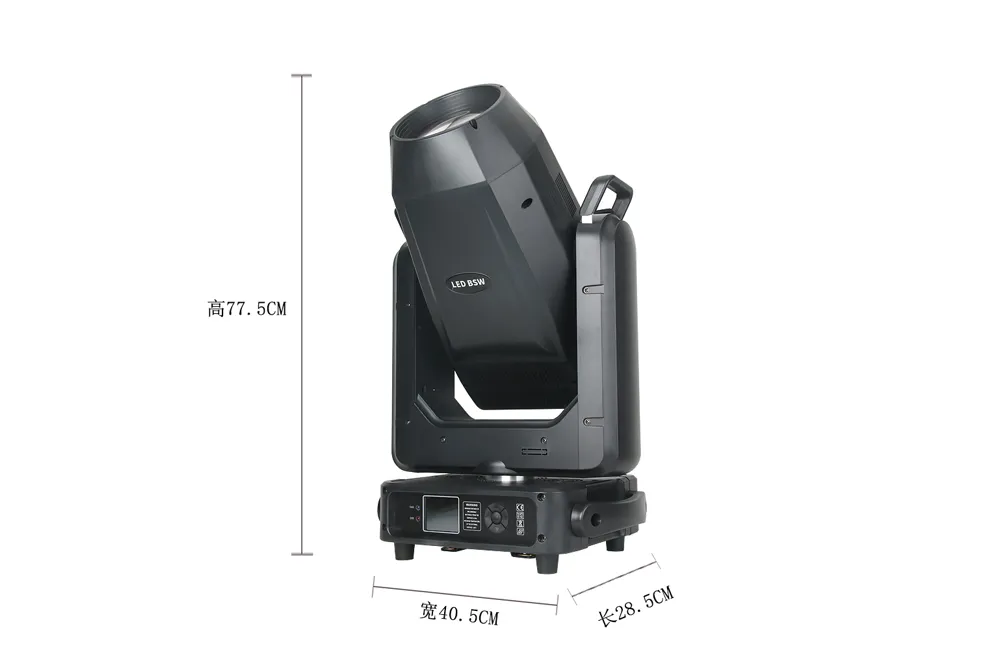

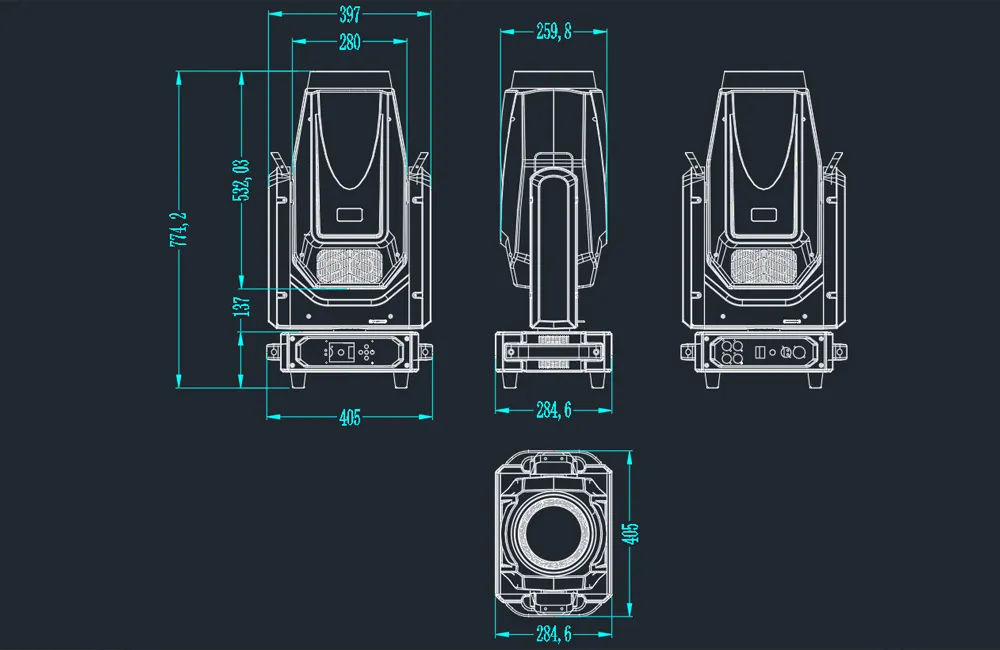

| Dimensions and Weight | Product size：77.5×40.5×28.5cm Packing size：79.5×36.5×50.5cm N.W：27.2kg G.W：30kg |
| Installation Method | It can be installed horizontally or vertically and can be hung on the side Two integrated light hooks/split light hooks suitable for Φ40-Φ60mm Truss Safety rope connection hole |
| Packing Quantity | 2 pcs/flight case 1 pc/carton |
| IP Rate | IP20 |
