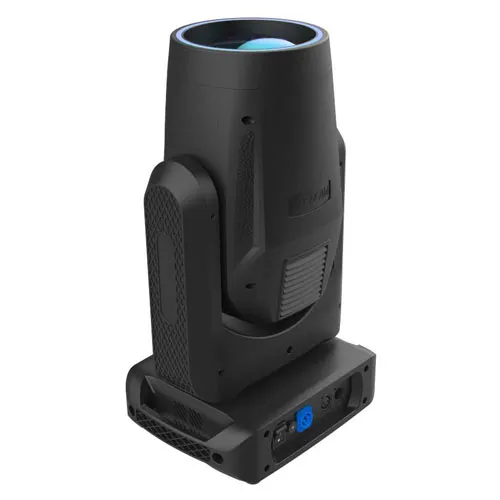

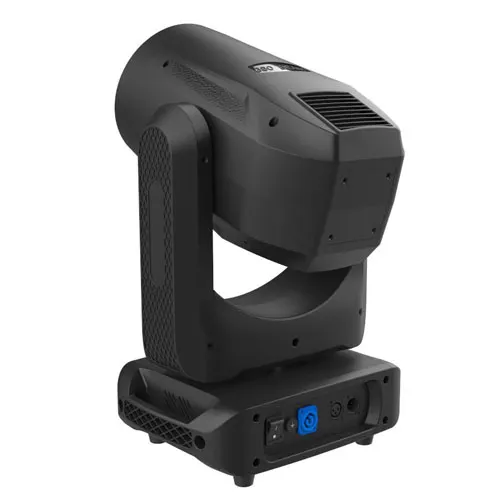

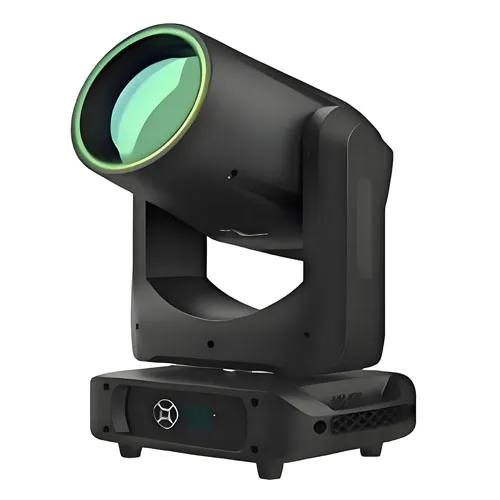

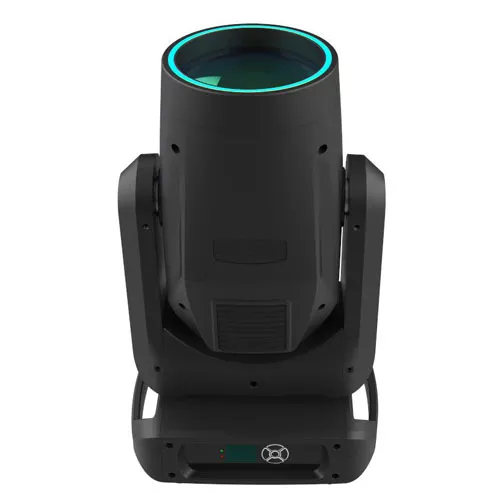

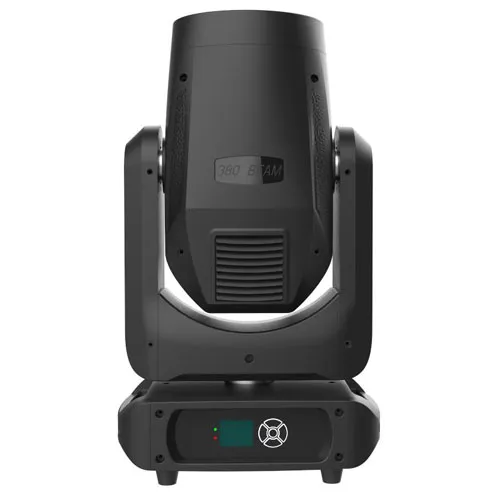

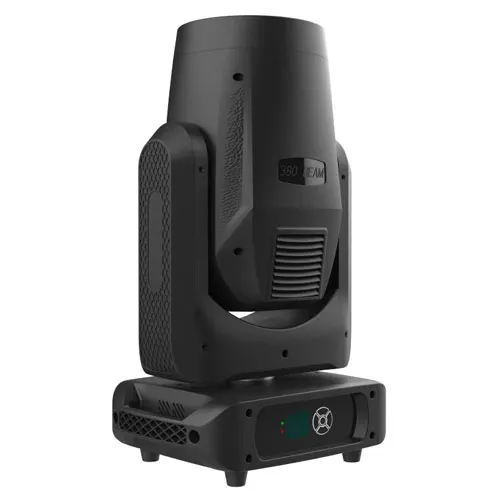

The 420W HID beam light source has a sharp beam, with an intensity far exceeding that of its peers and top-notch long-range performance. The high-speed motor drives precise positioning, and the multi-prism and color disk special effects interact smoothly. The powerful heat dissipation system can withstand long-term operation. Large outdoor performance stages rely on it to set the tone, and the light effect is extremely impressive.
420W HID, top-tier intensity and range.
Enhanced heat dissipation, extended runtime.
Designed for mega-events and continuous use.

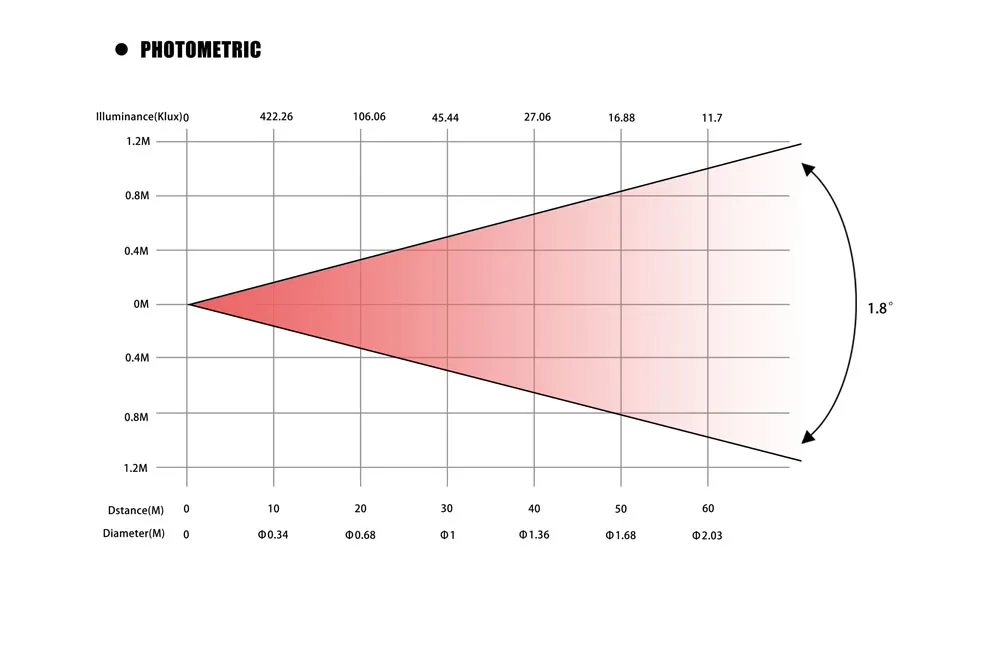

| Optical System | Light Source: 380W Bulb Output Lens: 160mm optical lens Beam Angle: 1.8° Color Temperature: 8500K Lamp Life: >3000 hours |
| Color System | 1 Fixed Color Wheel: 14 color filters + white, enabling two - way color rainbow, two - color step - by - step gradient (linear movement), two - way rotation of the color wheel, and random color mode 1 Six - color Filter: Capable of half - color and seven - color effects |
| Pattern System | 1 Fixed Pattern Wheel: 13 patterns + blank, with pattern jitter effect and arbitrary pattern positioning function |
| Effect Configuration | Prism: 8 + 16+24 honeycomb prism, 8 - prism, dual prisms can be superimposed and rotate independently in both directions Focus: Linear focusing, from near to far Fogging: 1 independent fogging effect Strobe: Supports mechanical strobe and adjustable - speed strobe effects, strobe macro function, mechanical strobe 1 - 12Hz/sec Dimming: Independent dimming device, 0 - 100% linear dimming |
| Pan and Tilt Parameters | Horizontal 540°, 8Bit/16Bit fine - tuning Vertical 270°, 8Bit/16Bit fine - tuning Horizontal and vertical use an electro - optical reset system with automatic error correction |
| Control and Programming | Control Channels: 16CH Control Modes: DMX512 control; built - in auto - run; sound - activated auto - run; master - slave operation |
| Electrical Control Technology | Convenient software upgrade via DMX data cable When the light is off, the bulb power automatically reduces for energy - saving and environmental protection Intelligent fan control Electronic sensing detection Uses an electro - optical reset system to automatically retrieve and reset after accidental misoperation DMX channel level monitoring Query lamp information through the LCD screen Bidirectional RDM data transmission Overheat protection Has fine automatic error correction for horizontal and vertical directions |
| Power Supply Parameters | Input voltage：AC100-240V 50/60Hz Power：450W |
| Dimensions and Weight | Product size：32.4×23.6×55.3cm Packing size：35×28×58cm N.W：14.75kg G.W：15kg |
| Installation | Horizontal or vertical installation 2 integrated folding lamp hooks suitable for 50cm Truss Safety rope connection holes |
| Packing Quantity | 2 pcs/flight case 1 pc/carton |
| IP Rate | IP20 |
