The 400W LED BSW light’s beam, pattern and dyeing work seamlessly together. High-power LEDs emit high-brightness luminous efficacy, far exceeding that of devices of the same level. The moving head mechanism provides wide-area coverage without blind spots. Precise light control is suitable for stages and celebrations. The operation is simple and energy-efficient, injecting steady impetus into light and shadow creativity.
400W LED, integrates beam, spot, wash.
Seamless mode switching, natural color blending.
Versatile for diverse stage scene changes.

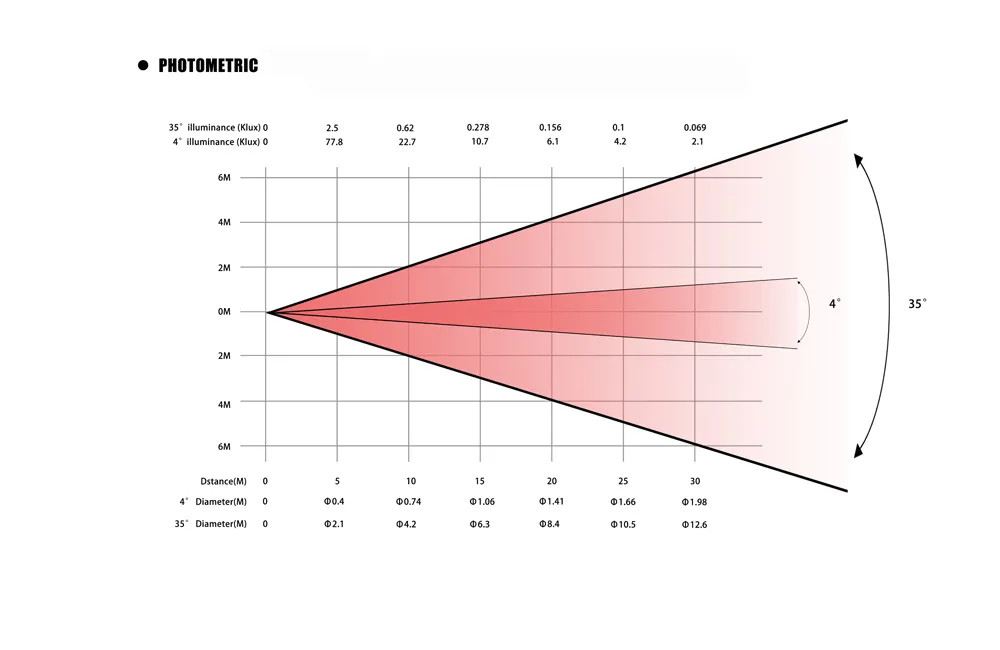

| Optical System | Light Source: 400W White LED Module Light Source Lamp Life: >20000 hours Color Rendering Index: 70 Output Angle: 0° - 40° Color Temperature: 9000K |
| Color System | CMY Infinite Color Mixing The linear variation range of CTO color temperature: 2700K-6250K 1 independent color palette, 8 color plates + white light, featuring step and linear color changing methods, as well as adjustable rainbow flowing water effect |
| Pattern System | 1 Rotating Pattern Wheel with 7 Removable Pattern Filters + White Light, enabling Flowing and Jittering Effects, Self - Rotation, and Pattern Wheel Positioning; Pattern Filter Diameter 20mm, Pattern Diameter 16mm, Thickness 1.1mm 1 Fixed Pattern Wheel with 12 Patterns + White Light, enabling Flowing and Jittering Effects |
| Effect Configuration | Dimming: 0-100% linear dimming, with gamma curve dimming. The frequency is adjustable from 1.2K to 25K, featuring macro command dimming. The linearity is stable, smooth and non-flickering. It adopts a stable constant current drive and power supply, making it suitable for video shooting Soft light: 1 soft light mirror, 0-100% linear adjustment Stroboscopic effect: 0.3-25Hz, synchronous and asynchronous random stroboscopic effects can be selected Prism: 1 spin four-sided prism +1 spin four-sided gradient prism, capable of bidirectional rotation Rotation Angle: The XY axes are driven by a high-speed, silent 60 three-phase motor, and are equipped with a high-precision magnetic coding positioning device, which makes the operation positioning more accurate. When a misoperation occurs, it can automatically return to its original position. The horizontal and vertical speeds are adjustable. Xy-axis rotation function and reverse rotation function |
| Pan and Tilt Parameters | Horizontal 540°, Accuracy 2.11°/Step, Fine - Tuning Accuracy 0.008° Vertical 270°, Accuracy 1.05°/Step, Accuracy 0.004° Horizontal and Vertical Use Magnetic Encoder Positioning Systems |
| Control and Programming | Channel Control: 24 - Channel Control Mode Communication Protocols: Standard DMX512 Protocol; RDM Protocol Control Interfaces: DMX512 Interface (3 - Pin/Optional 5 - Pin); Power Cord Daisy - Chain Socket Sleep Function: Advanced Technology for Remote Sleep Function. Automatically Enters Sleep Mode When the Lamp Loses Signal for Greater Stability and Safety Menu Display: 2.0 - Inch Black - and - White LCD Screen; Switchable Between Chinese and English Languages, 180° - Invertible Font Display, Contactless Scroll Wheel Operation |
| Electrical Control Technology | When the Light is Off, Power Automatically Reduces for Energy - Saving and Environmental Protection Intelligent Fan Control Heat Dissipation System: High - Thermal - Conductivity Copper Tube Heat Sink with Intelligent Fan Monitoring Technology Automatically Adjusts Fan Speed According to Lamp Temperature, with Built - in Intelligent Overheat Protection System/Intelligent Temperature - Noise Balance Module Electronic Sensing Detection DMX Channel Level Monitoring The X and Y axes are Driven by Three - Phase Motors, with Smooth Low - Speed Scanning and Low Noise Query Lamp Information, Bulb Usage Time, and Fault Information Through the Display Screen Electronic Focus Function Bidirectional RDM Data Transmission Software Upgrade via DMX Port Using Software Upgrade Device |
| Power Supply Parameters | Input voltage：AC100-240V 50/60Hz Power：430W |
| Working Environment | Operating temperature：-10℃~40℃ |

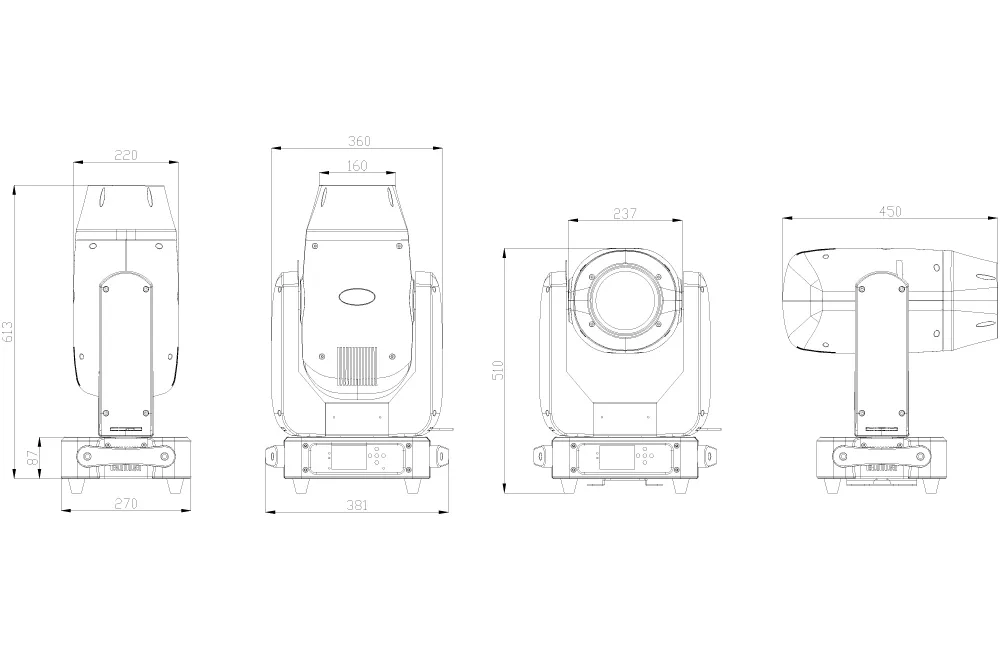

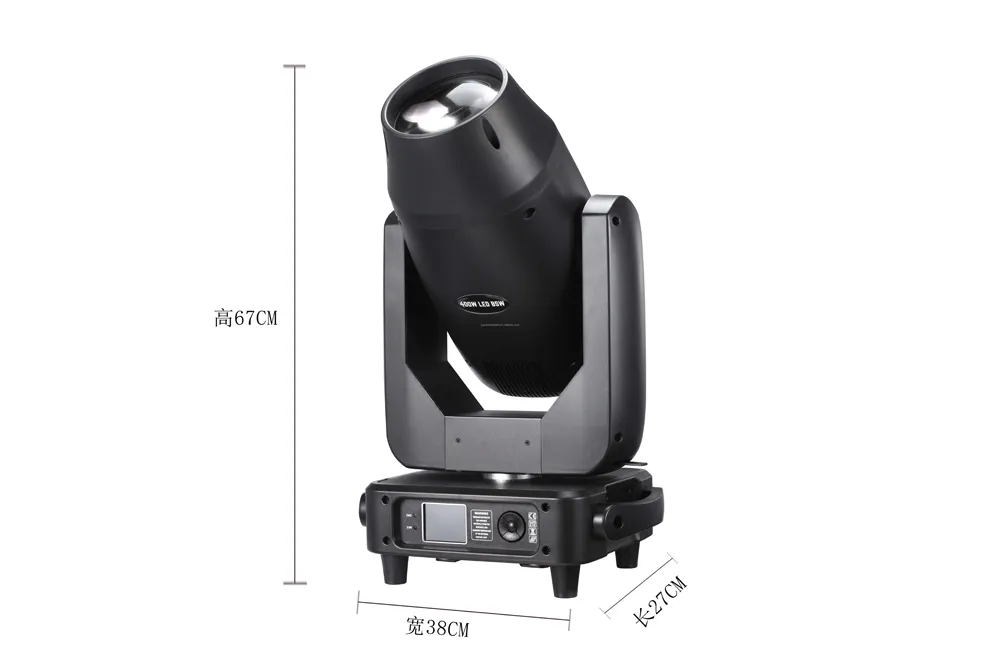

| Dimensions and Weight | Product size：65×27×38cm Packing size：60×45.5×53.5cm N.W：19.1kg G.W：21.8kg |
| Installation Method | It can be installed horizontally or vertically and can be hung on the side Two integrated light hooks/split light hooks suitable for Φ40-Φ60mm Truss Safety rope connection hole |
| Packing Quantity | 2 pcs/flight case 1 pc/carton |
| IP Rate | IP20 |
