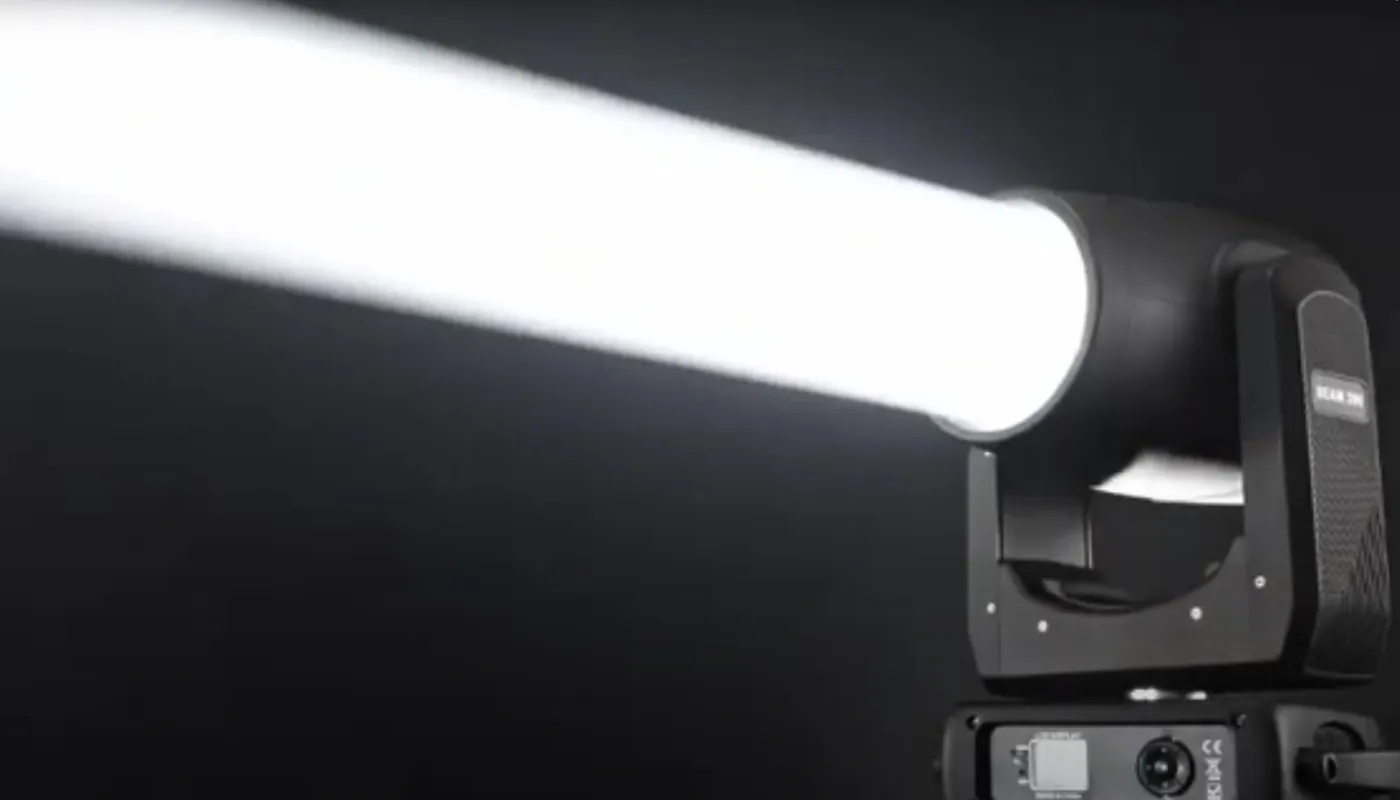

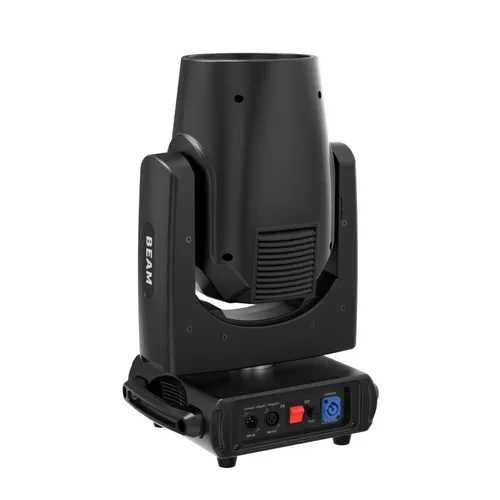

The 380W HID beam light source is extremely bright and its long-range radiation is unparalleled. The fast and silent motor moves precisely, and the multi-effect linkage is smooth. DMX/RDM control is seamlessly compatible, professional heat dissipation is as stable as a rock, and it is the core lighting effect driver for large-scale stage feasts.
380W HID, extreme brightness output.
Silent operation, precise positioning control.
Ideal for large-scale concerts and venues.

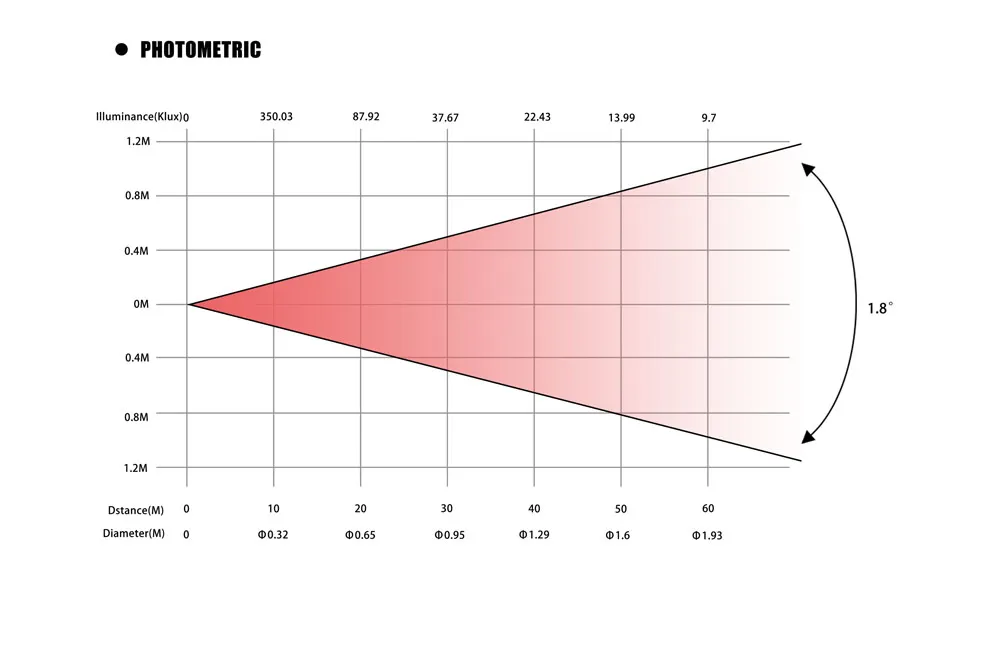

| Optical System | Light Source: 380W Bulb Lamp Life: >3000 hours Color Temperature: 7800K Output Lens: 152mm Optical Lens Output Angle: 1.8° |
| Color System | 1 Fixed Color Wheel: 14 color filters + white light, enabling two - way color rainbow, two - color step - by - step gradient (linear movement), two - way rotation of the color wheel, random color mode, and half - color effect 1 Six - color Filter: Capable of half - color and seven - color effects |
| Pattern System | 1 Fixed Pattern Wheel: 14 patterns + blank, with pattern jitter effect and arbitrary pattern positioning function |
| Effect Configuration | Prism: 8 + 8+8 honeycomb prism, 16 - prism, dual prisms can be superimposed 40 and rotate independently in both directions Focus: Linear focusing, from near to far Fogging: 1 independent fogging effect with soft and natural light spots Strobe: Supports mechanical strobe and adjustable - speed strobe effects, strobe macro function, mechanical strobe 1 - 12Hz/sec Dimming: 0 - 100% linear adjustment |
| Pan and Tilt Parameters | Horizontal 540°, 8Bit/16Bit fine - tuning Vertical 270°, 8Bit/16Bit fine - tuning Horizontal and vertical use an electro - optical reset system with automatic error correction |
| Control and Programming | Control Channels: 16CH Control Modes: DMX512 control; built - in auto - run; sound - activated auto - run; master - slave operation |
| Electrical Control Technology | Convenient software upgrade via DMX data cable When the light is off, the bulb power automatically reduces for energy - saving and environmental protection Intelligent fan control Electronic sensing detection DMX channel level monitoring Query lamp information through the LCD screen Bidirectional RDM data transmission Overheat protection Has fine automatic error correction for horizontal and vertical directions |
| Power Supply Parameters | Input voltage：AC100V-240V 50/60Hz Power：600W |

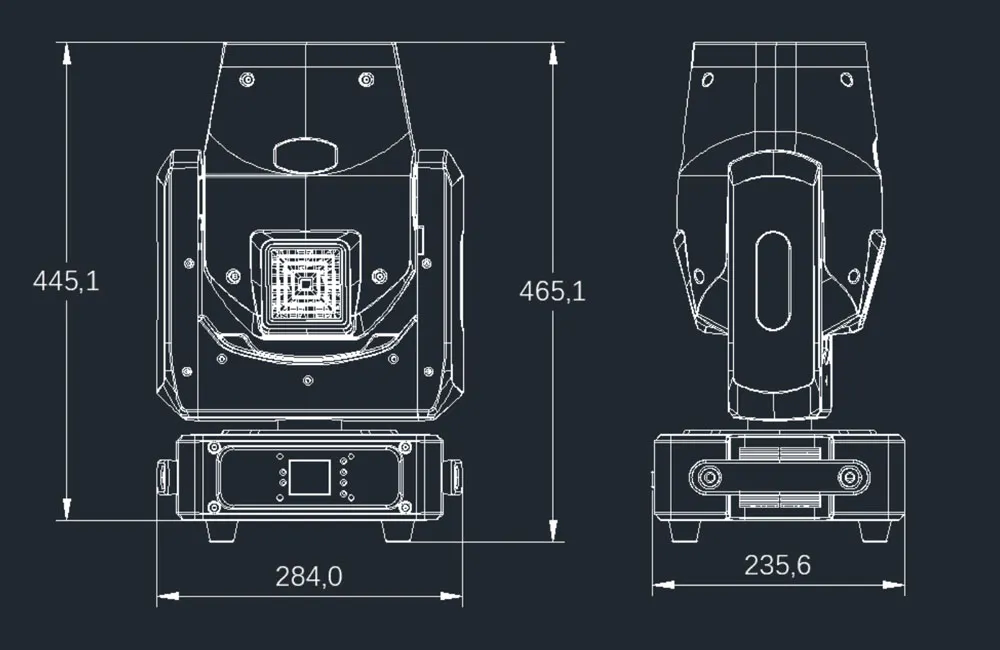

| Dimensions and Weight | Product size：44.5×28.5×23.5 cm Packing size：56×38×42.5cm N.W：18kg G.W：21kg |
| Installation Method | Horizontal or vertical installation 2 integrated folding lamp hooks suitable for 50cm Truss Safety rope connection holes |
| Packing Quantity | 2 pcs/flight case 1 pc/carton |
| IP Rate | IP20 |
