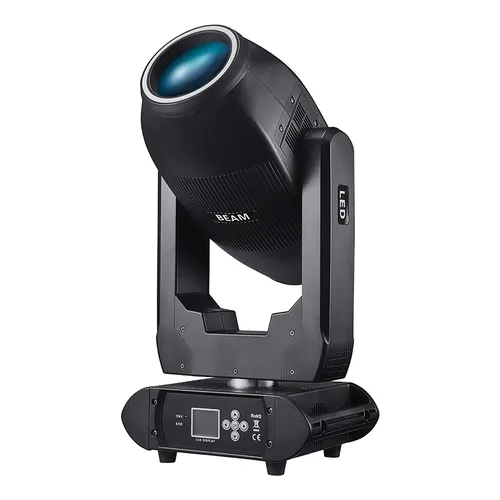

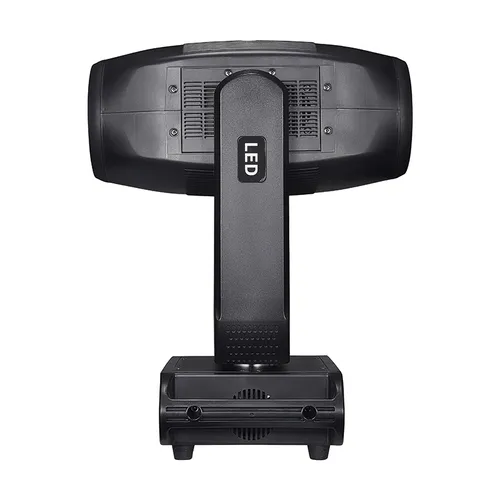

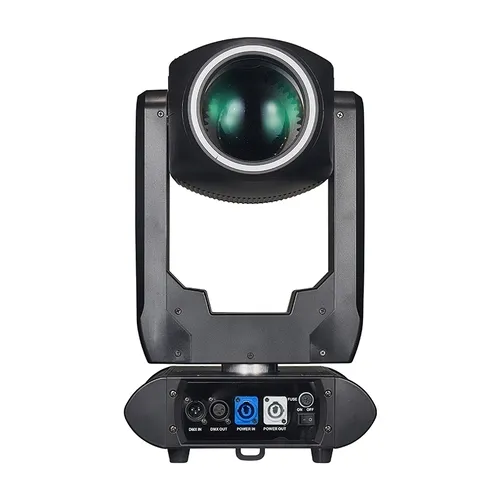

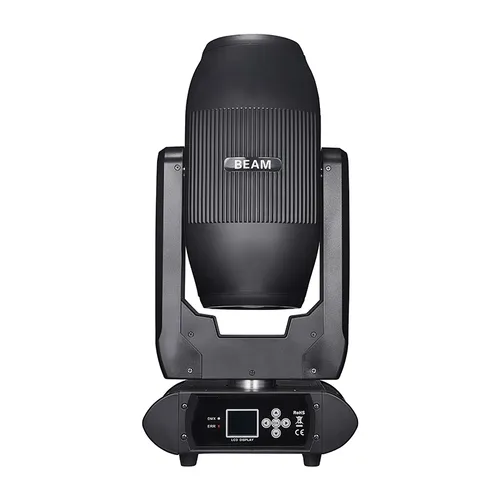

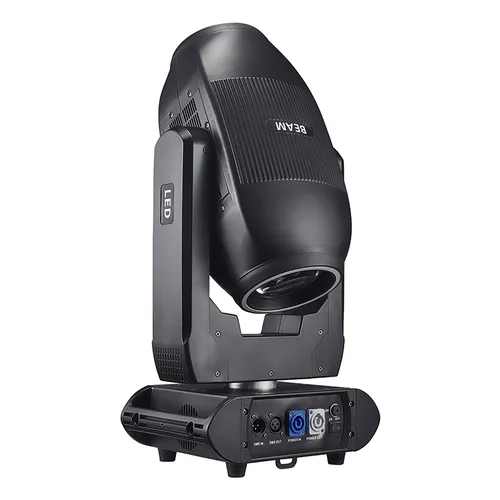

The 300W LED double head infinite beam light source intensity doubles, 360° stepless rotation without blind spots. The independent dual heads can control the light synchronously or asynchronously, and the built-in CMY color mixing and prism effects are rich. With the support of intelligent heat dissipation, the lighting effect tension of large-scale concerts is maximized.
Dual 300W LEDs, dual-beam simultaneous output.
360° infinite rotation, sync/async control.
Creates layered effects for complex light shows.
| Optical System | Light Source: 200W bulb Beam Angle: 4° Color Temperature: 8500K Lifespan: > 20000h |
| Color System | One fixed color wheel: 11 color filters + white light. Capable of bi - directional color rainbow, two - color step - by - step gradient (linear movement), bi - directional color wheel rotation, and random color mode One six - color filter: Can achieve half - color and seven - color effects |
| Pattern System | One fixed pattern wheel: 18 patterns + blank. Capable of pattern jitter effect and arbitrary pattern positioning function |
| Effect Configuration | Prisms: 2 prisms Focus: Linear focusing Frost: One independent frost effect Stroboscopic: 1-25Hz Dimming: 0-100% electronic linear dimming |
| Pan and Tilt Parameters | Pan: Infinite 360° rotation (16 - bit resolution) Tilt: Infinite 360° rotation (16 - bit resolution) Both pan and tilt use an electro - optical reset system with automatic error correction |
| Control and Programming | Control Channels: 33CH Control Modes: DMX512 Control / Built - in Auto - Run / Sound - Activated Auto - Run / Master - Slave Auto - Run |
| Electronic Control Technology | Easy and quick software upgrade via DMX data cable When the light is off, the bulb power is automatically reduced for energy - saving and environmental protection Intelligent fan speed control Electronic sensor detection DMX channel level monitoring Query lamp information via LCD screen Bi - directional RDM data transmission Overheat protection Fine automatic error - correction for both pan and tilt |
| Power Parameters | Input voltage：AC100-240V，50-60Hz Power: 300W |

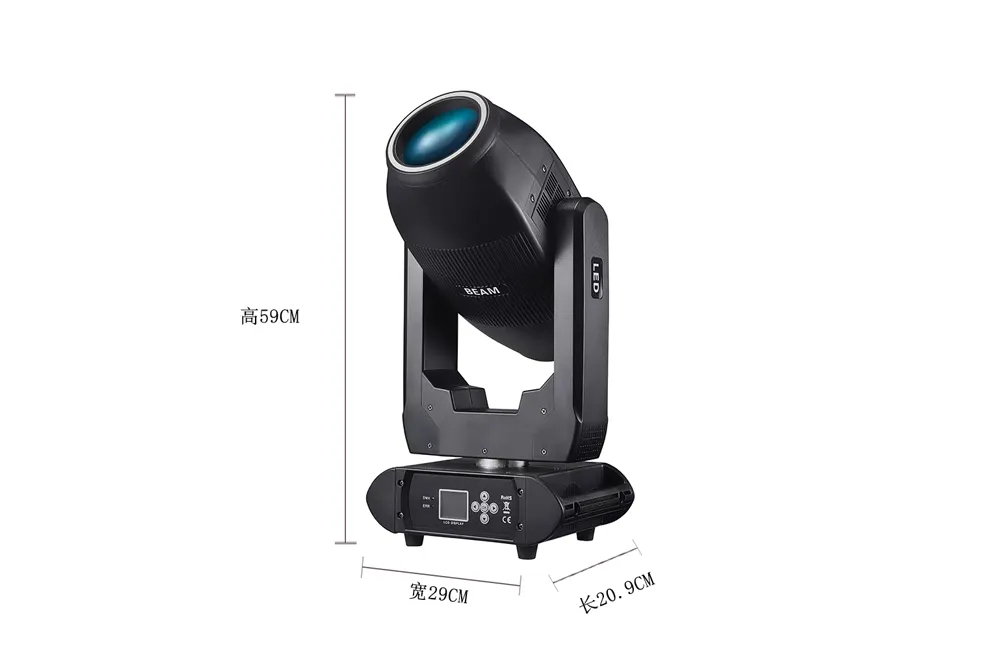

| Dimensions and Weight | Product Size: 59×20.9×29 cm Packing Size: 67×30×37 cm N.W: 12.7 kg G.W: 14.9 kg |
| Installation | Horizontal or vertical installation Two integrated folding lamp hooks suitable for 50cm truss Safety rope connection holes |
| Packing Quantity | 2 pcs/flight case 1 pc/carton |
| IP Rate | IP20 |
