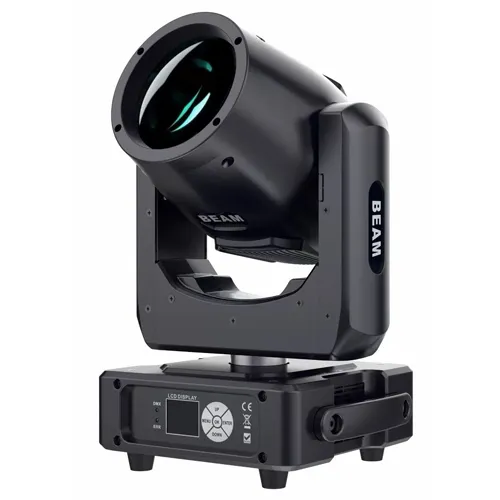

230 HID Beam Light source emits sharp beams and has strong penetration. The dynamic effect is enhanced by the multi-prism and color disk, ensuring precise and rapid shaking and pitch. High-efficiency heat dissipation ensures stability. DMX interlocking control is suitable for stages and large-scale events. Professional lighting effects easily create a stunning effect.
230W HID source, sharp focused beam.
Quick effect transitions, agile movement.
Stable for small to medium stage events.

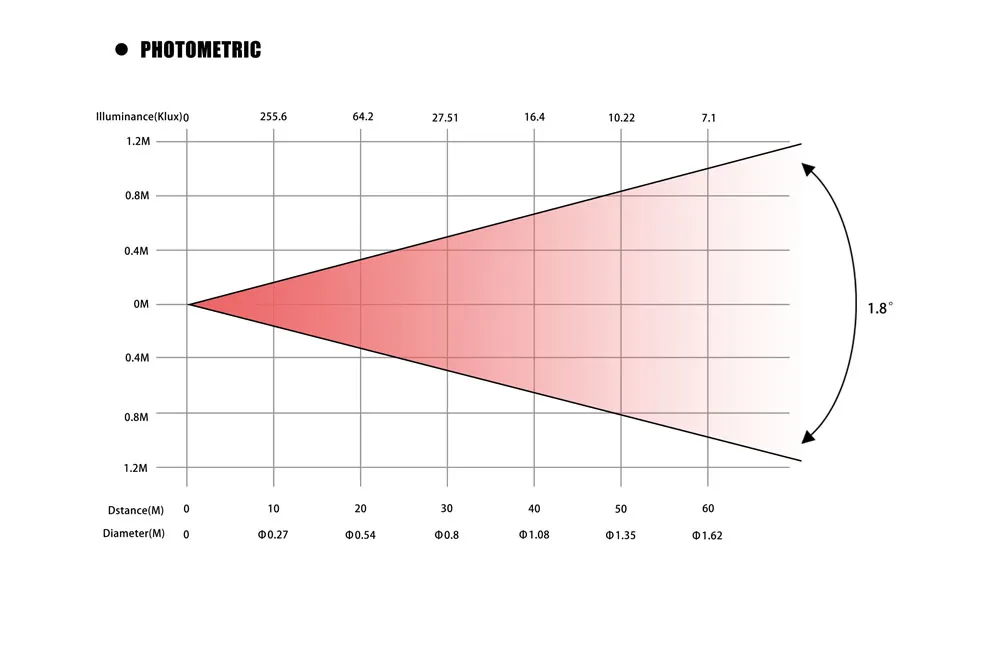

| Optical System | Light Source: 230W Bulb Light Source Output Lens: 128mm Optical Lens Lifespan: >3000 hours Color Temperature: 7000K±200K Beam Angle: 1.8° |
| Color System | 1 Fixed Color Wheel: 13 color filters + white light, enabling bidirectional color rainbow, two - color step - by - step gradient (linear movement), bidirectional rotation of the color wheel, and random color mode One Six - Color Filter: Capable of half - color and seven - color effects |
| Pattern System | 1 Fixed Pattern Wheel: 13 patterns + blank, with pattern jitter effect and arbitrary pattern positioning function |
| Effect Configuration | Prism: 8+16 honeycomb prism, can rotate in both directions, and the rotation speed is adjustable Focusing: Electric focusing Atomization: 1 independent atomization effect Stroboscopic: 1-13Hz, independent stroboscopic device, and can be selected in pulsating, asynchronous, synchronous, random slow, medium, and fast modes Dimming: Independent dimming device, 0-100% linear dimming |
| Pan/Tilt Parameters | Horizontal: 540°, 8Bit/16Bit fine - tuning Vertical: 270°, 8Bit/16Bit fine - tuning Horizontal and vertical use an electro - optical reset system with automatic error correction |
| Control Programming | Control Channels: 15CH Control Modes: DMX512 control; built - in auto - run; sound - activated auto - run; master - slave operation |
| Electronic Control Technology | Software upgrade via DMX data cable, convenient and fast When the light is off, the bulb power is automatically reduced for energy - saving and environmental protection Intelligent fan control Electronic sensing detection DMX channel level monitoring Query lamp information via LCD screen Bidirectional RDM data transmission Overheat protection With fine automatic error correction for horizontal and vertical directions |
| Power Supply Parameters | Input voltage：AC200V-240V 50/60Hz Power：400W |

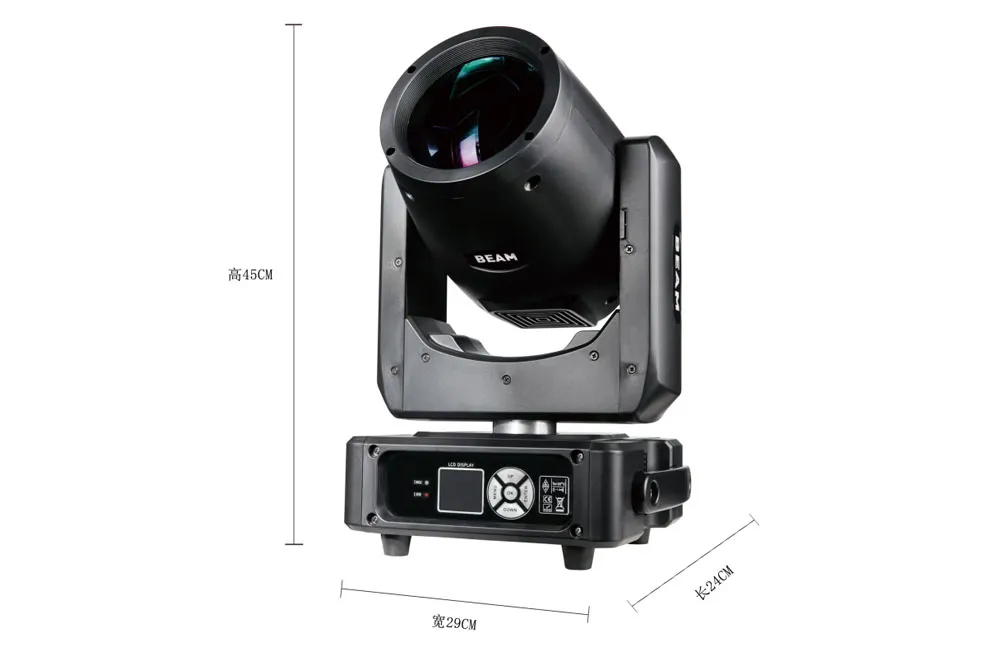

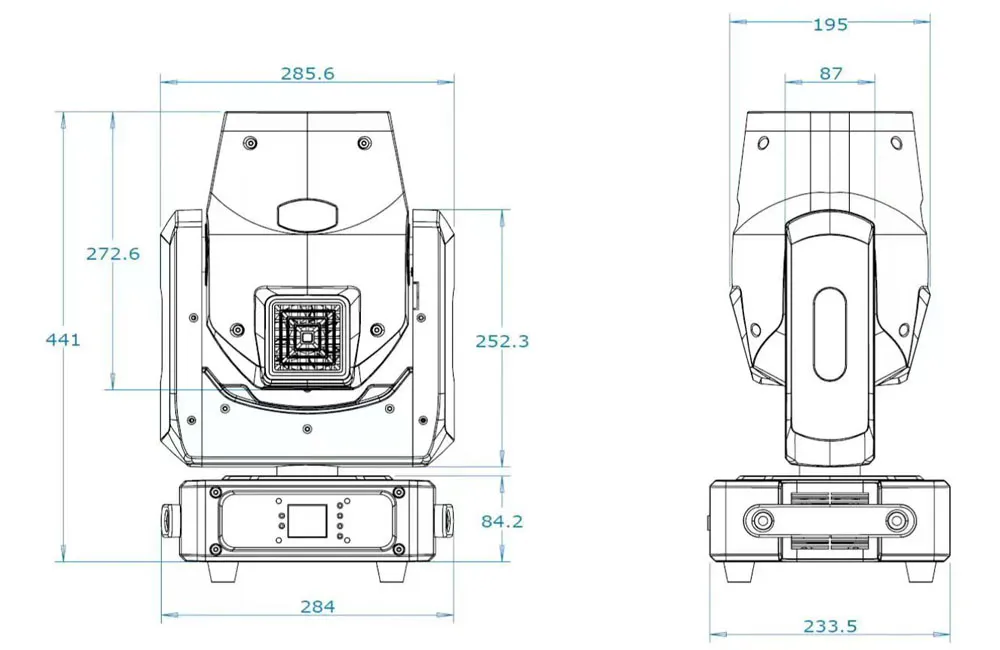

| Dimensions and Weight | Product size: 45×29×24 cm Packing size: 51×36×35 cm N.W: 10.8 kg G.W: 12.3 kg |
| Installation Method | Horizontal or vertical installation Two integrated folding lamp hooks suitable for 50cm Truss Safety rope connection holes |
| Packing Quantity | 2 pcs/flight case 1 pc/carton |
| IP Rate | IP20 |
