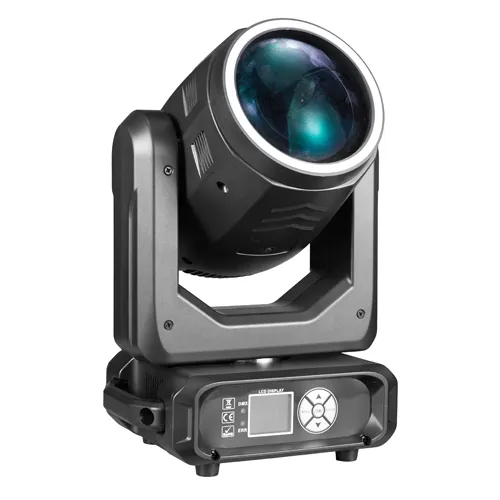

The beam 200w led moving head light is a professional-grade stage lighting fixture. It adopts a 150W light source and 25 RGB lamp beads for vivid color mixing. It is equipped with 12 color plates and 15 patterns, 540° large-angle shaking, and automatic error correction to ensure positioning. Intelligent temperature control, suitable for all kinds of performances, dynamic light effects can be created at will.
200W LED, rich RGB color mixing.
540° wide rotation, auto-correction function.
Energy-efficient for dynamic small-venue effects.

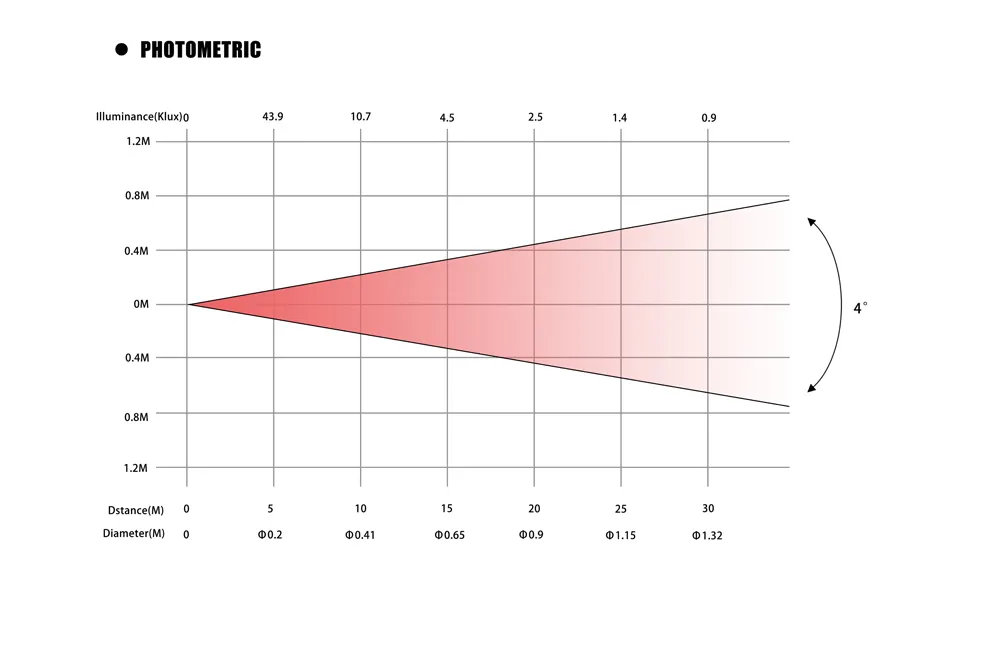

| Optical System | Light Source: 150W LED Module + 25 RGB LEDs Lamp Life: >20000 hours Color Temperature: 8500K Output Angle: 4° Output Lens: 120mm Optical Lens |
| Color System | 1 Fixed Color Wheel: 11 color filters + white light, enabling two - way color rainbow, two - color step - by - step gradient (linear movement), two - way rotation of the color wheel, and random color mode 1 Six - color Filter: Capable of half - color and seven - color effects |
| Pattern System | 1 Fixed Pattern Wheel with 15 patterns + blank, with pattern jitter effect and arbitrary pattern positioning function |
| Effect Configuration | Prism: 16+12 prism, capable of independent bidirectional rotation Focusing: Linear focusing Atomization: 1 independent atomization effect Stroboscopic effect: 1-20Hz, supports mechanical stroboscopic and adjustable stroboscopic effects, and supports stroboscopic macro function Dimming: 0-100% linear dimming |
| Pan and Tilt Parameters | Horizontal 540°, 8Bit/16Bit fine - tuning Vertical 270°, 8Bit/16Bit fine - tuning Horizontal and vertical use an electro - optical reset system with automatic error correction |
| Control and Programming | Control Channels: 16CH Control Modes: DMX512 control; built - in auto - run; sound - activated auto - run; master - slave operation |
| Electrical Control Technology | Convenient software upgrade via DMX data cable When the light is off, the bulb power automatically reduces for energy - saving and environmental protection Intelligent fan control Electronic sensing detection DMX channel level monitoring Query lamp information through the LCD screen Bidirectional RDM data transmission |
| Power Supply Parameters | Input voltage：AC110V-220V，50-60HZ Power：150W |

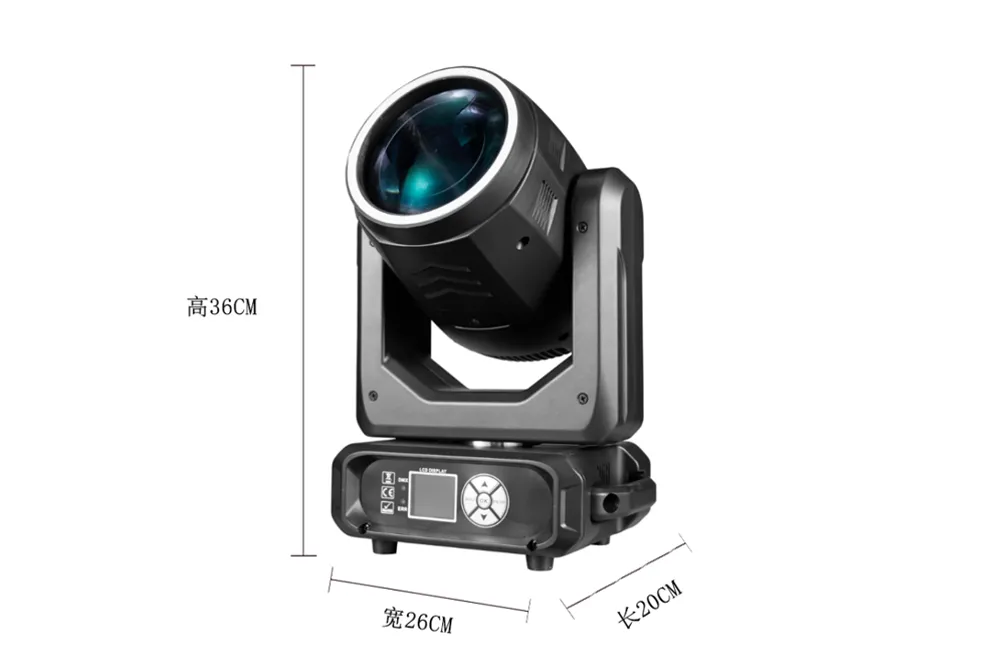

| Dimensions and Weight | Product size：36×20×26cm Packing siae：36×30×26cm N.W：5.35kg G.W：6.2kg |
| Installation Method | Horizontal or vertical installation 2 integrated folding lamp hooks suitable for 50cm Truss Safety rope connection holes |
| Packing Quantity | 2 pcs/flight case 1 pc/carton |
| IP Rate | IP20 |
